Video For Automatic Tea Bag Filling Sealing Machine

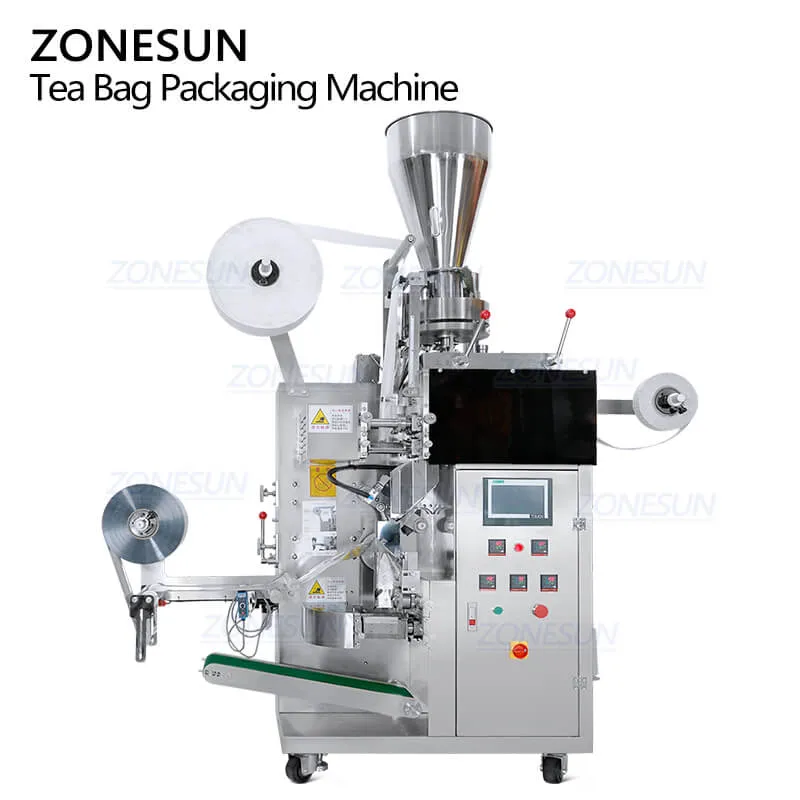

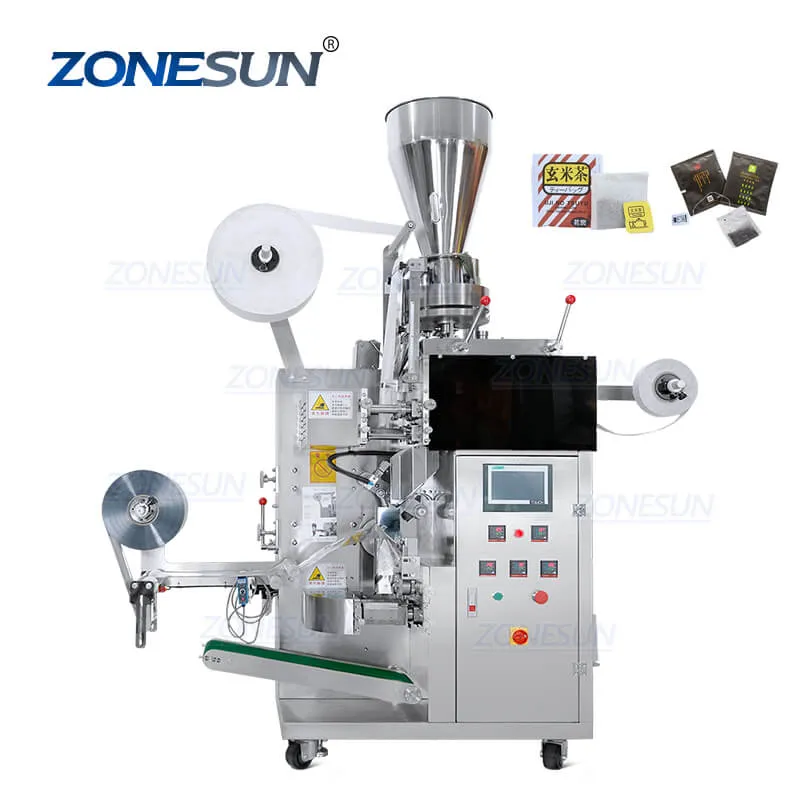

The full automatic tea filling and sealing machine is suitable for the dual bag packing of small grain, such as tea leaves, and healthy teas. The outside composite multi-layers film, inside filter paper bag with cotton thread and tag.
Parameter
- Machine Model:ZS-FS622
- Voltage:220V/50Hz
- Power:3.7kW
- Measuring Method:Cup Measuring
- Packaging Speed:About 30-40 bags/min
- (depending on bag size and filling materials)
- Filling Range:3-10g
- Inner Bag Size:(L)50-70mm*(W)45-80mm
- Outer Bag Size:(L)80-120mm*(W)75-95mm
- Sealing Way:3 Sides Sealing
- Air Consumption:≥0.4m³/min
- Machine Size:About 1500*650*2250mm(L*W*H)
- Machine Weight:About 550kg

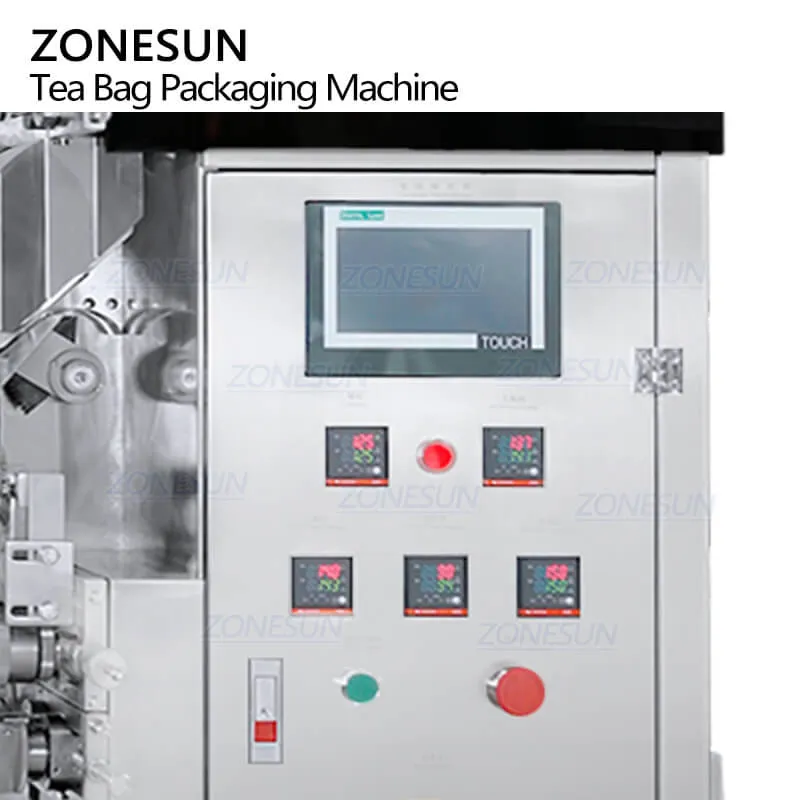

With PLC control panel,you can set or adjust working parameters easily.The language of panel can be customized as needed.

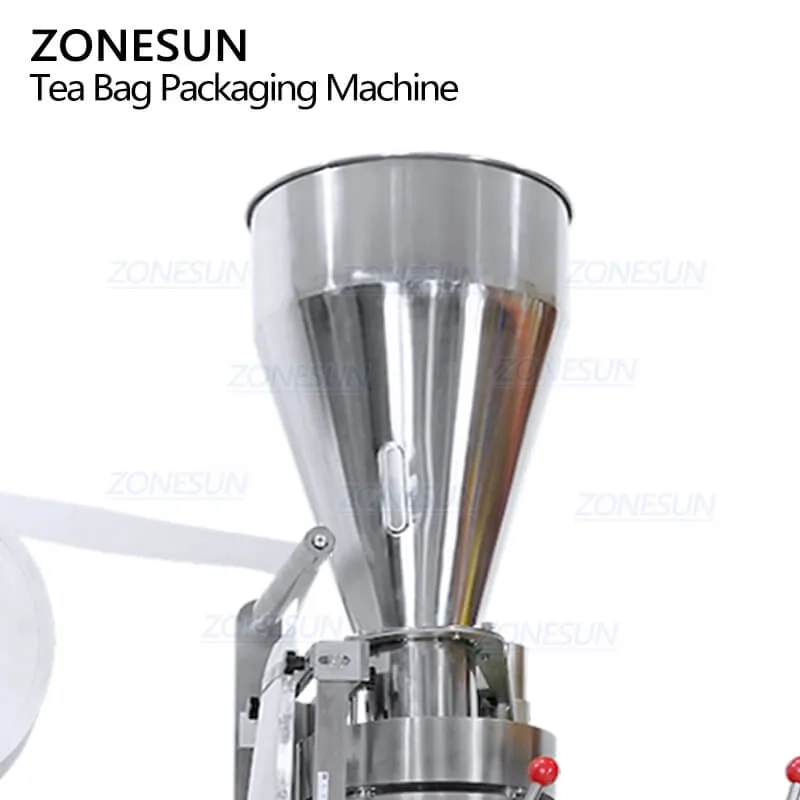

With stainless steel hopper,it can ensure production quality.It adopts the way of cup measuring,which can fill materials quantitatively.
With film holder,it can feed films automatically,saving labor cost and improving efficiency.

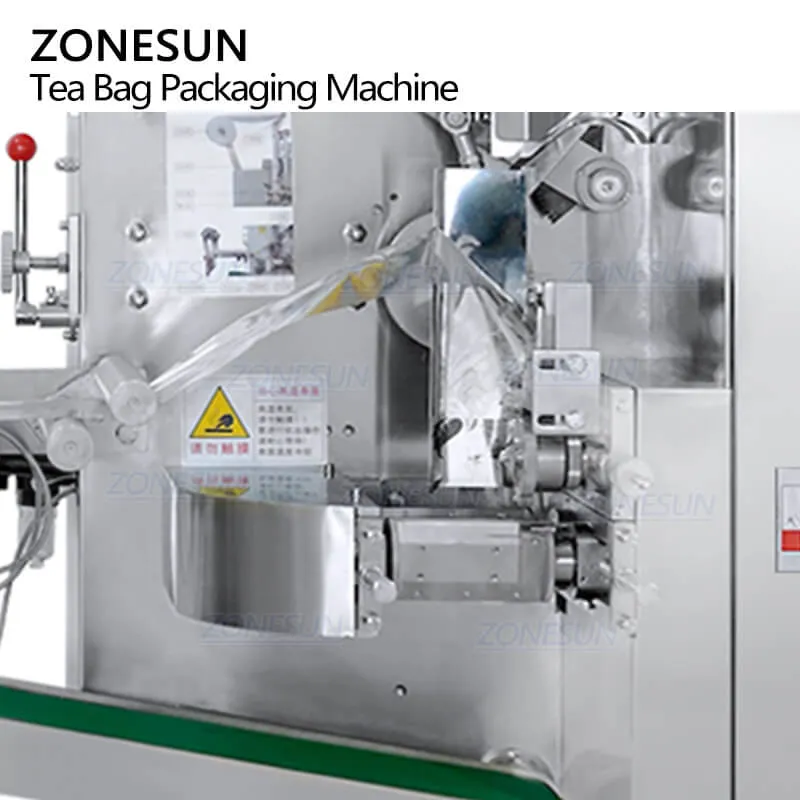

With the way of heat sealing,it can seal bags firmly.The sealing temperature can be set on panel easily.
